The Center Section
Click on an image to see a larger picture




The centersection top has been removed and you can see the spacer and the top of the scrubber canister.

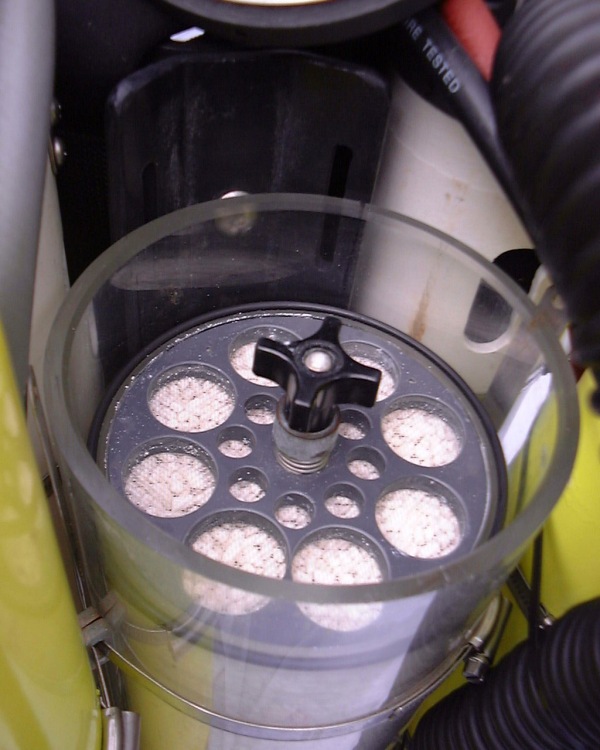

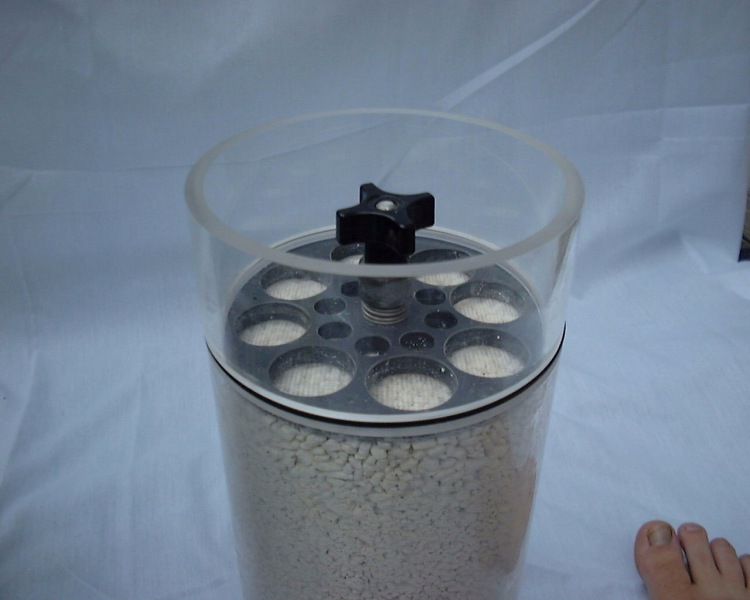

The spacer has been removed and you can see the top of the scrubber canister and the o-ring

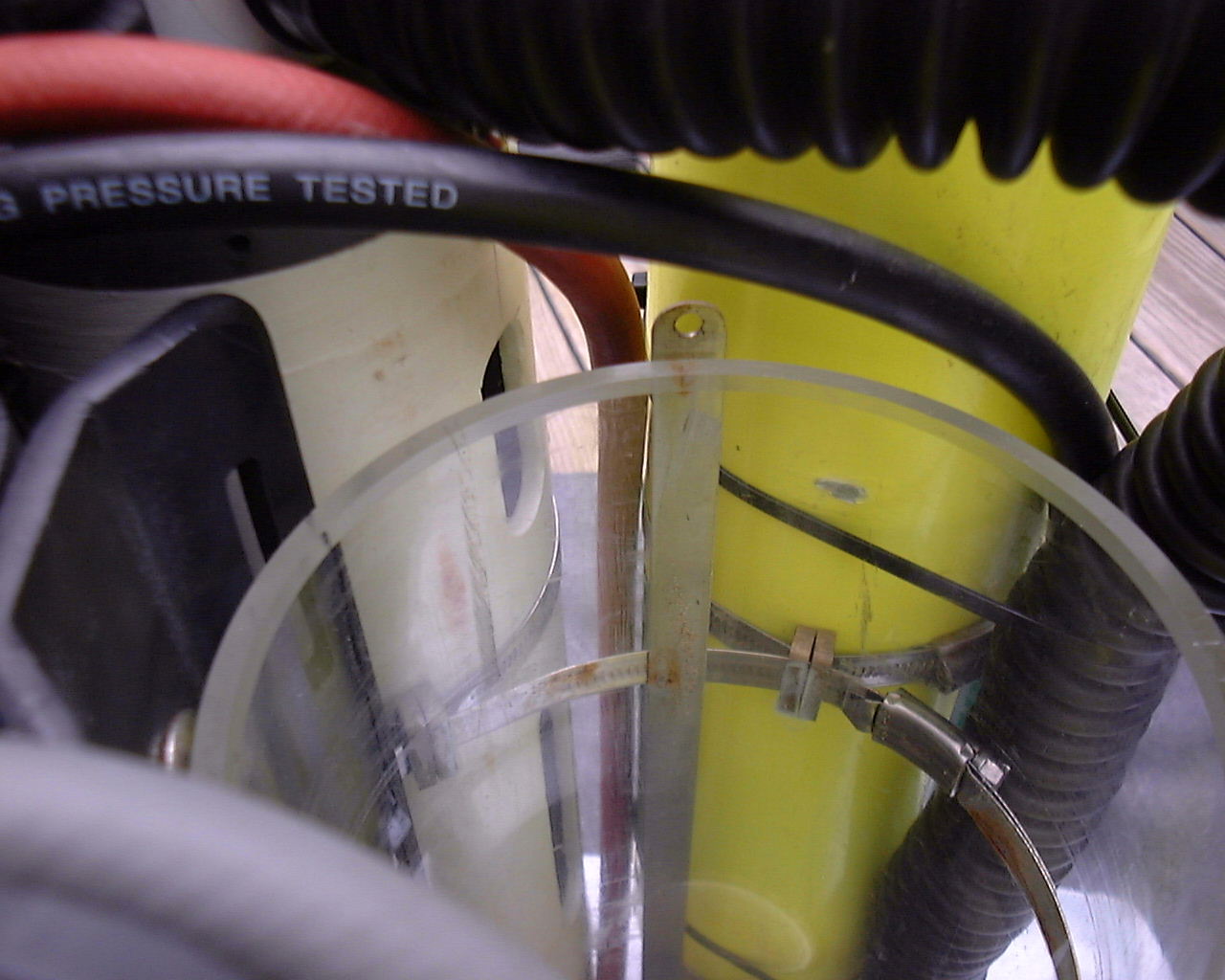

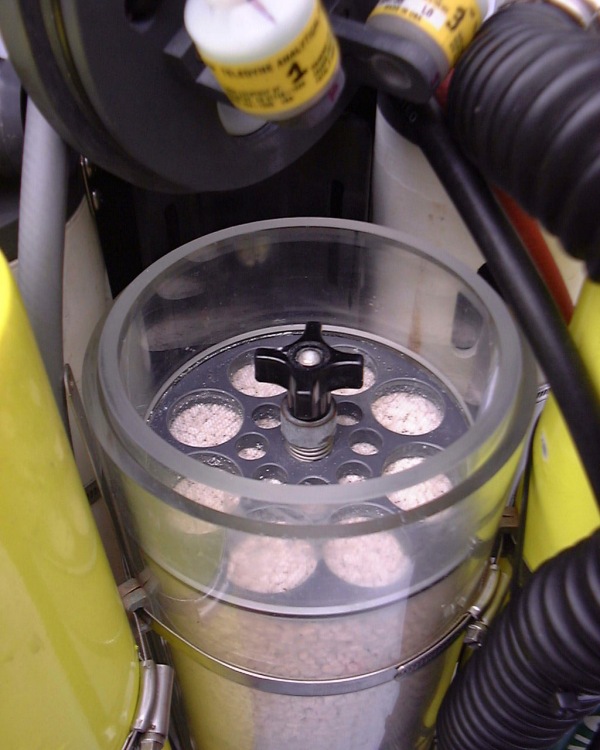

Now the scrubber canister has been removed and you can see the stainless straps used to keep the centersection top on.

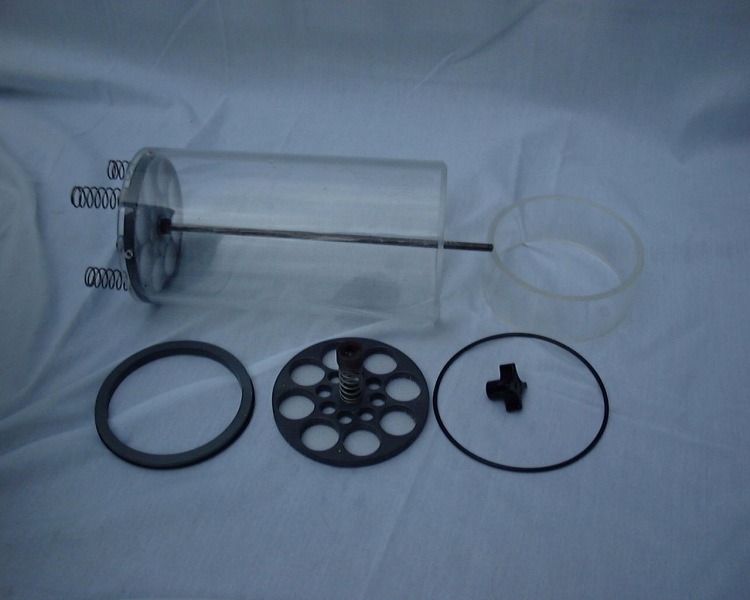

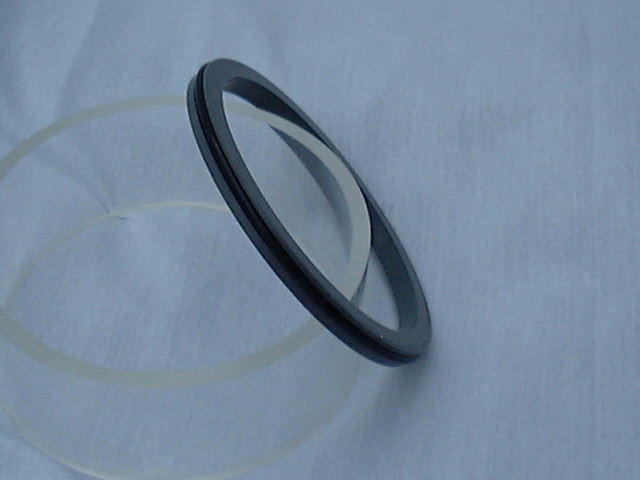

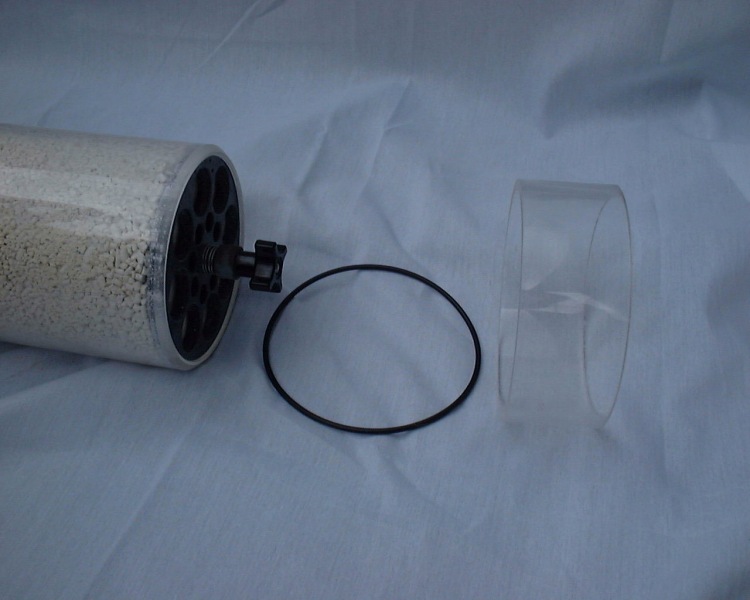

The scrubber canister, o-ring, and spacer.

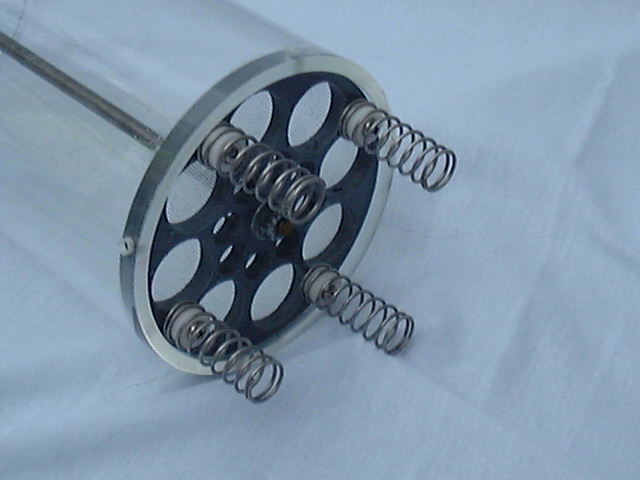

The bottom of the scrubber showing the springs that push up the canister to seat the o-ring seal.

The bottom of the scrubber again.

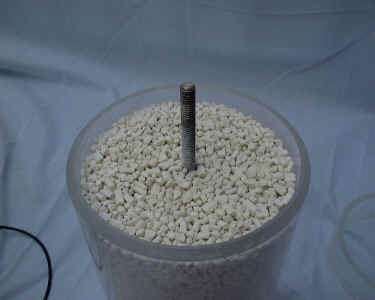

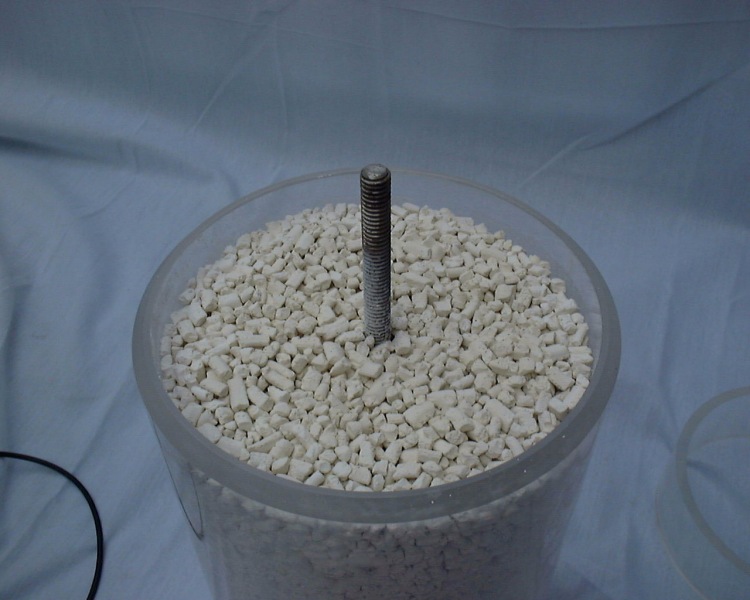

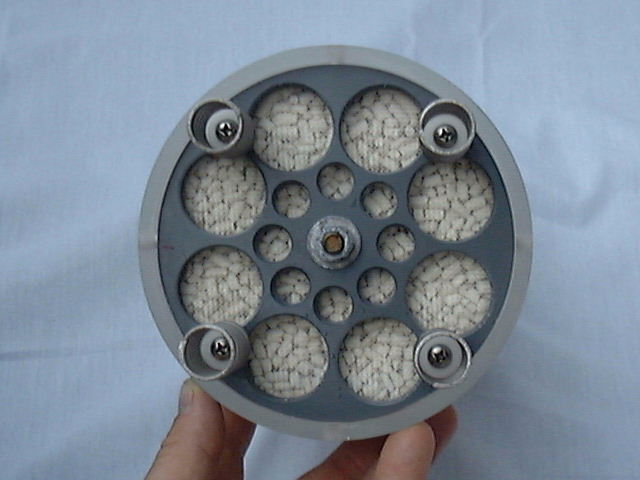

The top of the scrubber.

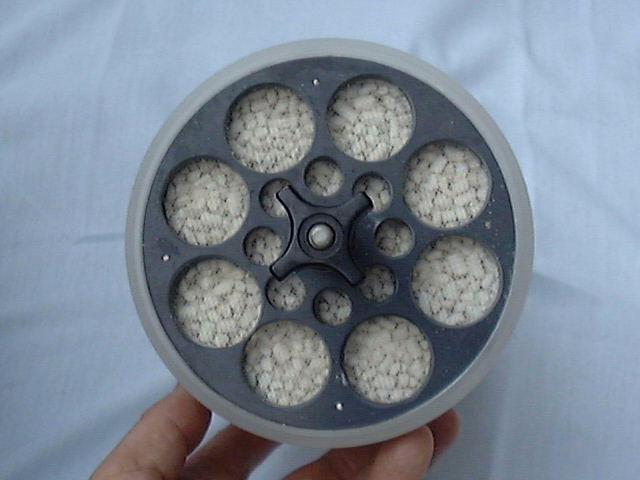

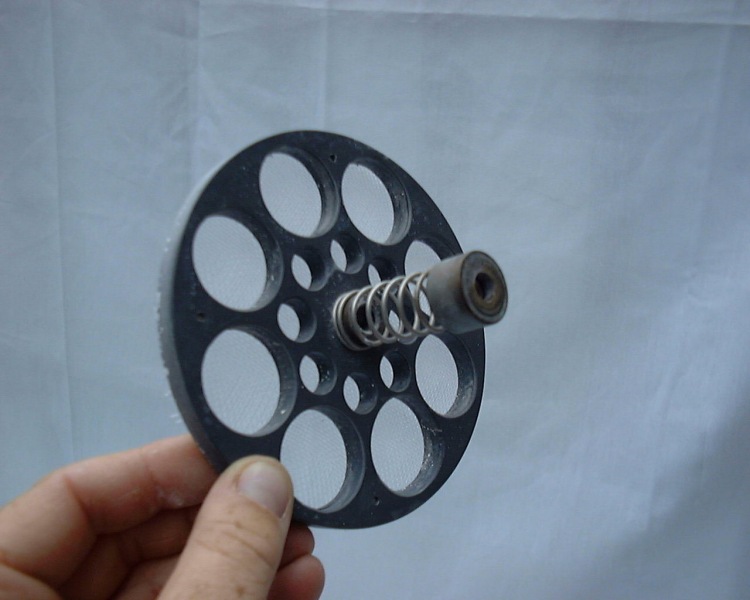

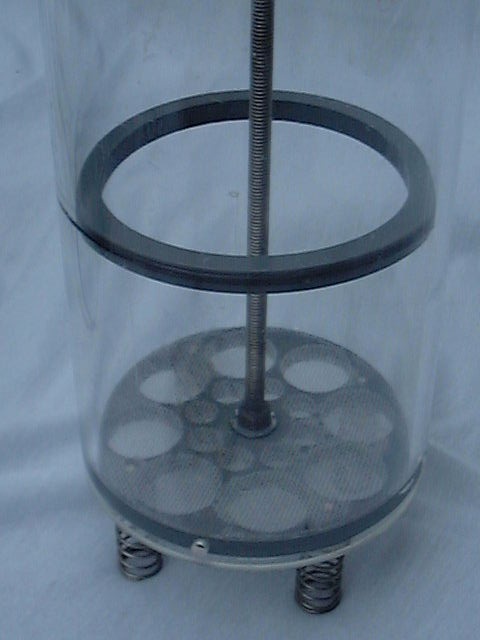

The scrubber top piece which moves to take up space due to settling.

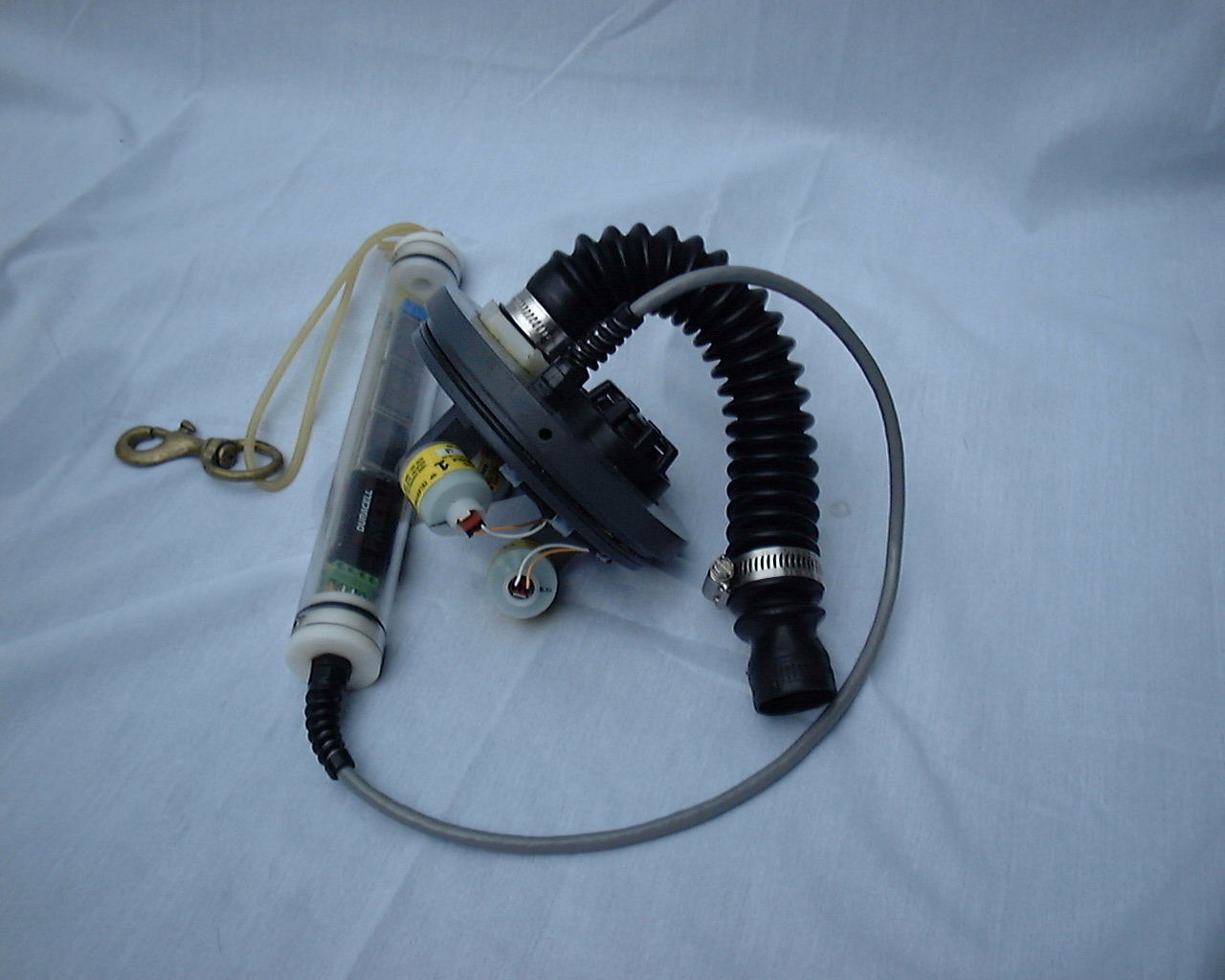

Here's how the pieces would look put together inside the centersection.

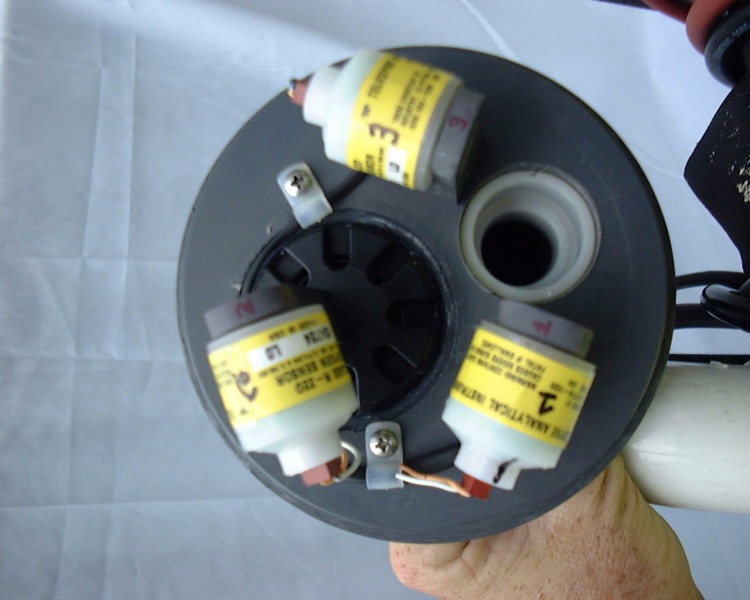

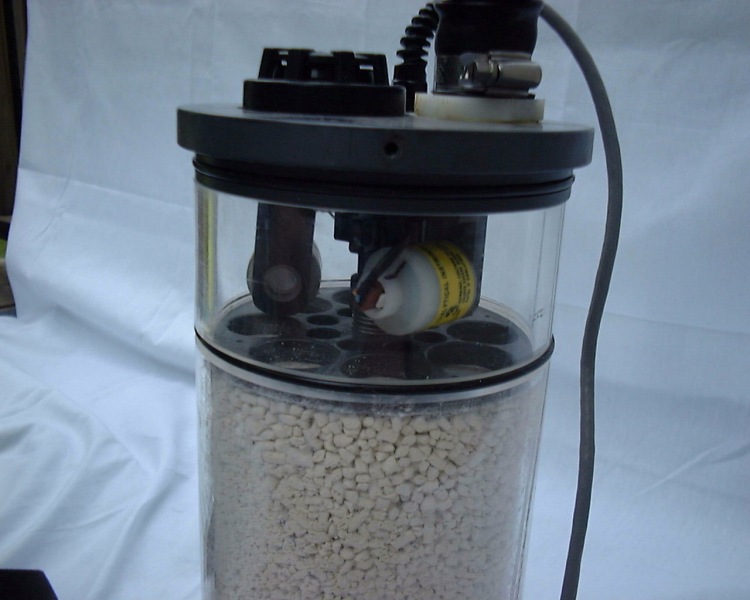

Again but with no centersection lid.

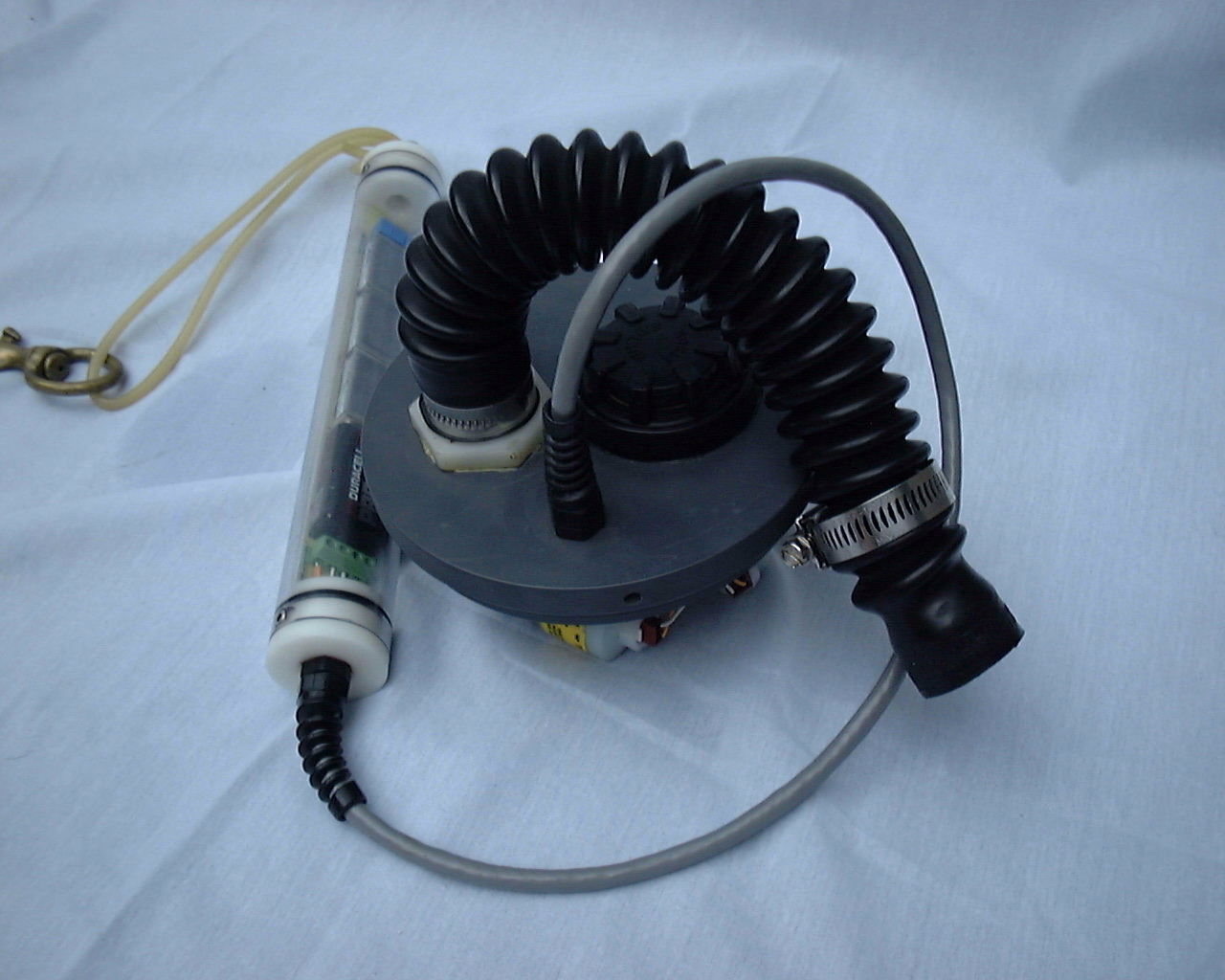

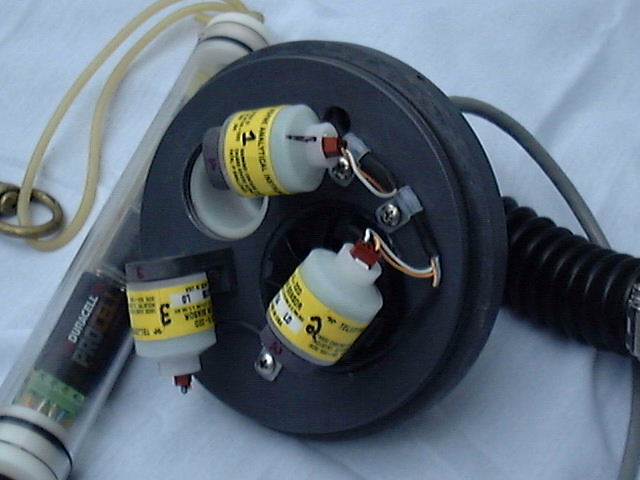

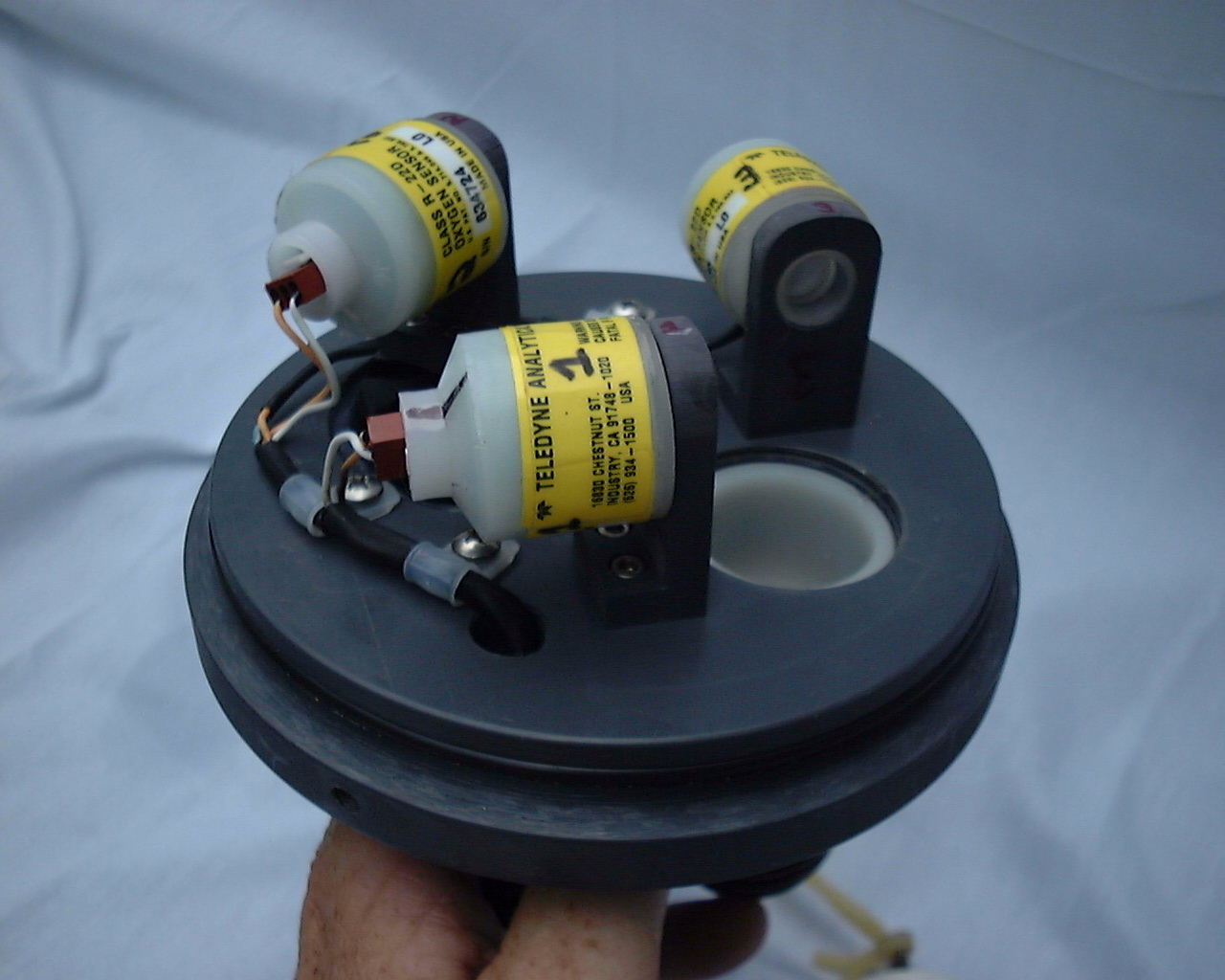

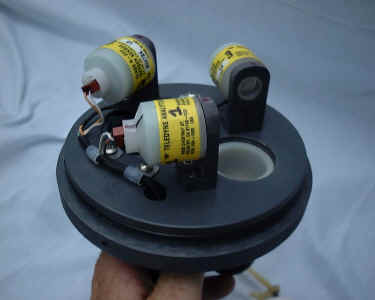

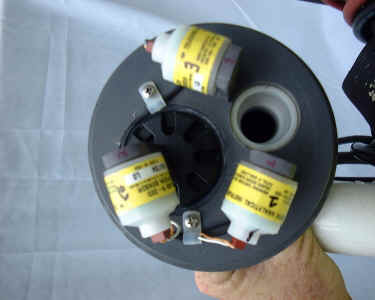

The centersection lid, sensors, OPV, and display housing.
